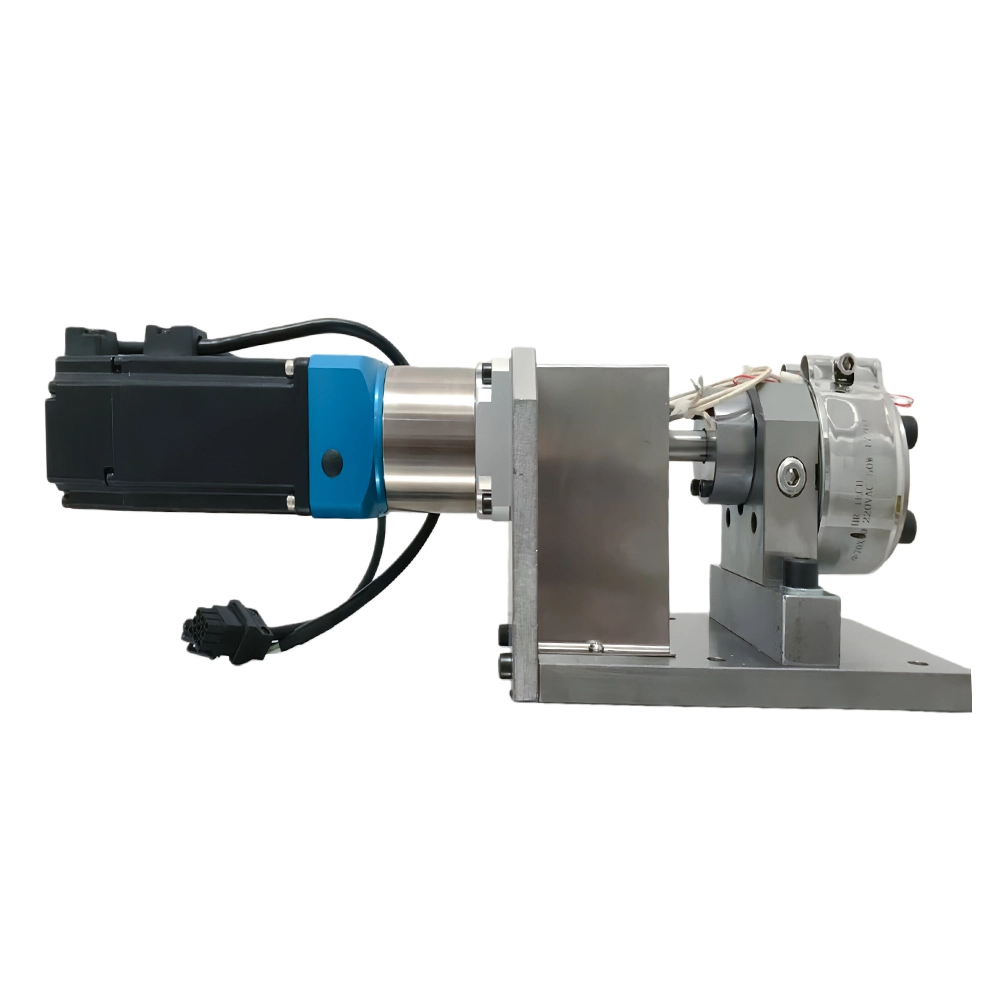

Trustech Gear Metering Pump D9000 for production process of polymers

In the hollow fiber membrane manufacturing process, precise control and stable delivery of materials are essential to achieve consistent fiber structure and high product quality. A gear metering pump provides accurate volumetric dosing and smooth, low-pulsation material transfer, making it an ideal solution for maintaining stable spinning conditions. By ensuring uniform flow and supporting the required pressure for the spinning pump, it contributes to efficient and reliable operation. For this reason, Trustech equips its systems with dedicated metering gear pumps, helping customers enhance membrane quality, improve production efficiency, and ultimately lower overall manufacturing costs.

Inquiry

Write a Review

Optional design

Metering gear pumps are widely used in the manufacturing of a broad range of polymer materials and are suitable for nearly all hollow fiber membrane production routes. They can be applied in TIPS (thermally induced phase separation), NIPS (nonsolvent-induced phase separation), melt processing, spinning, cold stretching (MSCS), and other related technologies. Compatible polymers include PVDF (polyvinylidene fluoride), CA (cellulose acetate), PVC (polyvinyl chloride), PES (polyethersulfone), PSF/PSU (polysulfone), PA (polyamide/nylon), PAN (polyacrylonitrile), PTFE, and many others.

01 (2)

Specifications

Model	D9000
Operating temperature	150 ℃
Displacement	0.2, 0.5, 1, 2, 3, 5, 10, 20, 40, 70, 100, 150 cc/rev
Speed	Up to 300 rpm (for high viscosity or non-lubricating fluids, the speed and pressure should be reduced.)
Discharge pressure	Up to 70 bar (actual discharge pressure depends on the material viscosity and the maximum load torque of the pump shaft.)
Max. load torque of the pump shaft	0.2 cc/rev:1Nm
	0.5 cc/rev:10Nm
	1-3 cc/rev:20Nm
	5-10 cc/rev:40Nm
	20-40 cc/rev:60Nm
	70-150 cc/rev:180 Nm
Interface	0.2,0.5,1,2,3:Rc1/4'' taper thread
	5,10:Rc1/2'' taper thread
	20,40:SAE 61 3/4'' flanged face
	70,100,150:SAE 61 1-1/4'' flanged face
Shaft seal	Mechanical seal, lip seal, graphite packing seal (optional)

Brief Introduction

Trustech is a leading company that specializes in the research, development, and manufacturing of hollow fiber membrane spinning machines and spinning spinnerets. These spinning machines and spinning spinnerets have extensive applications across various industries including water purification, gas separation, hemodialysis, ECMO (Extracorporeal Membrane Oxygenation), food and beverage processing, biotechnology, and chemical engineering, among others.

Trustech is not only at the forefront of hollow fiber membrane spinnerets which develop FCT 5th － 8th generation technology, but also leading hollow fiber membrane spinning machine and flat sheet membrane casting system. Backed by outstanding R&D and quality, Trustech holds China’s high-end market, upgraded spinning systems to enhance precision and stability, and engineered key subsystems including the SteadyiCore Ultra 2.0 Heating system,TitanMix Pro 4.0 Mixing system, PrimeGlider Pro 3.0 Automatic pay-off, SmartCoil Elite 3.0 Automatic winding and StoutDrive 2.0 motor drive setup. These advances of spinning machine and spinneret improved spinning system stability, reduced commissioning and production downtime, and increased overall spinning efficiency by 11.4% compared with before the improvements.
